本篇将基于基础篇实现一个较为完整的基于直方图的自动曝光功能

算法流程

  • 拿到Scene Color
  • 计算Avg Luminance
    • 基于每个Pixel Color→计算Luminance
    • 直方图分成64个部分，每部分视作一个桶，将Luminance换算成”挡位”，丢进64个桶
    • 最暗与最亮的桶，不纳入后续的计算
    • 剩下的桶，加权平均
    • 还原成Luminance，得到Luminance_{Avg}
  • $Luminance_{Avg} = Clamp[Luminance_{Avg}， Luminance_{Min}, Luminance_{Max}]$
  • 计算曝光系数

    Exposure Scale = MiddleGrey * exp2(EC) / Luminance_{Avg}
    其中，EC意味手动控制的曝光强度

算法实现

整体可以分成三个Pass：

  • Clear Histogram
  • Build Histogram
  • Compute Exposure Scale

Build Histogram

核心部分：丢进64个桶

groupshared uint GSLocalHistogram[HISTOGRAM_SIZE];

[branch]
if (GroupIndex < HISTOGRAM_SIZE)
{
    GSLocalHistogram[GroupIndex] = 0;
}
GroupMemoryBarrierWithGroupSync();

uint2 SourceSize = (uint2)g_SourceSize.xy;
if (SamplePos.x < SourceSize.x && SamplePos.y < SourceSize.y)
{
    float3 SourceColor = LoadTexture2D(g_SourceTexIndex, SamplePos);
    float Luminance = AutoExposureLuminance(SourceColor);
    uint BinIndex = LuminanceToHistogramBin(Luminance, g_HistogramScale, g_HistogramBias);
    InterlockedAdd(GSLocalHistogram[BinIndex], 1);
}
GroupMemoryBarrierWithGroupSync();

[branch]
if (GroupIndex < HISTOGRAM_SIZE)
{
    InterlockedAdd(HistogramBuffer[GroupIndex], GSLocalHistogram[GroupIndex]);
}

Compute Exposure Scale

核心部分：计算曝光系数

groupshared uint GSGlobalHistogram[HISTOGRAM_SIZE];

if (groupIndex < HISTOGRAM_SIZE)
{
    HistogramRT[UINT2(groupIndex, 0)] = GSGlobalHistogram[groupIndex] = HistogramBuffer[groupIndex];
}
GroupMemoryBarrierWithGroupSync();

uint SumBin = 0;
[unroll]
for (UINT i = 0;i < HISTOGRAM_SIZE; i++)
{
    SumBin += GSGlobalHistogram[i];
}

float MinBin = (float)SumBin * saturate(g_LowPercent);
float MaxBin = (float)SumBin * saturate(max(g_HighPercent, g_LowPercent));

float TotalEv = 0;
float TotalCount = 0;
[unroll]
for (UINT i = 0; i < HISTOGRAM_SIZE; i++)
{
    float CurrBin = GSGlobalHistogram[i];
    float CurrSub = min(CurrBin, MinBin);

    CurrBin -= CurrSub;
    MinBin -= CurrSub;
    MaxBin -= CurrSub;

    CurrBin = min(CurrBin, MaxBin);
    MaxBin -= CurrBin;

    float HistogramPos = float(i) / (float(HISTOGRAM_SIZE) - 1);
    TotalEv += ComputeLogLuminanceFromHistogramPosition(HistogramPos, g_HistogramScale, g_HistogramBias) * (float)CurrBin;
    TotalCount += (float)CurrBin;
}

float AverEV = TotalEv * rcp(max(TotalCount, 1e-5));
float AverLuminance = ComputeLuminanceFromLogLuminance(AverEV);
float ClampAverLuminance = clamp(AverLuminance, g_MinAverageLuminance, g_MaxAverageLuminance);

float MiddleGreyLuminance = g_MiddleGrey * ComputeLuminanceFromLogLuminance(g_ExposureCompensationEV);

float ExposureScale = MiddleGreyLuminance / max(ClampAverLuminance, 1e-5);

如何正确应用曝光系数

在考虑这个问题时，需要搞清楚渲染管线中，曝光系数会对哪些后效，产生很严重的影响（大大影响其本来的效果，将其带偏），没错就是”Tonemap”

也就是说，需要考虑是在Tonemap之前、之中、之后，计算、应用曝光系数

答案是在Tonemap之前计算曝光系数，之前应用曝光系数

为什么是Tonemap之前计算曝光系数

因为tonemap曲线非线性，会压暗部、亮部，且计算自动曝光的时候，亮度会和中灰对比

经过非线性映射后亮度全部都被映射到[0,1]，整体不会亮暗不会被区分开

为什么是Tonemap之前应用曝光系数

假设是Tonemap后（亮度被映射到[0,1]），应用曝光系数，亮暗不会拉开，自动曝光的收益不高

而应用Tonemap前（亮度范围很宽），此时应用曝光系数，亮暗对比会被拉的很开，效果很明显

目前的效果

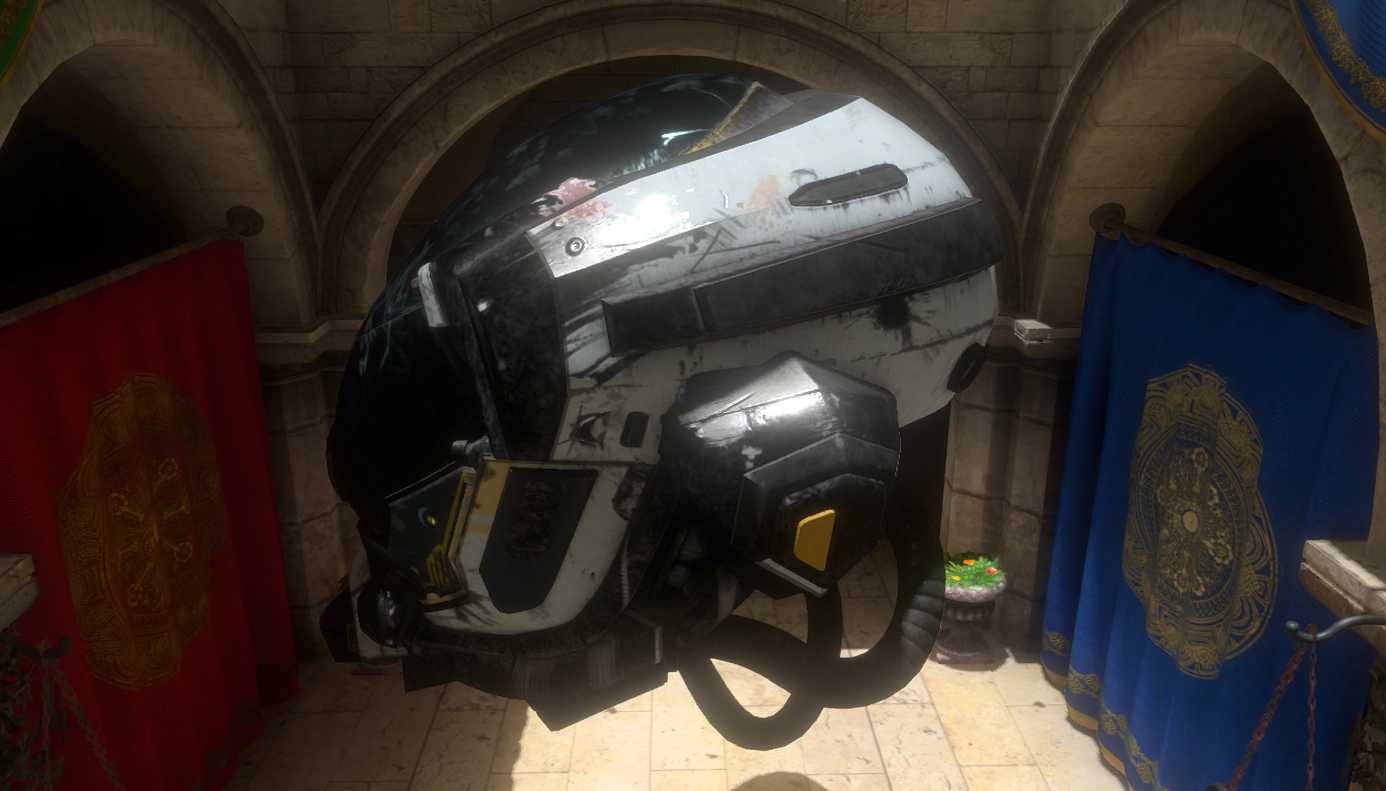

开启自动曝光：

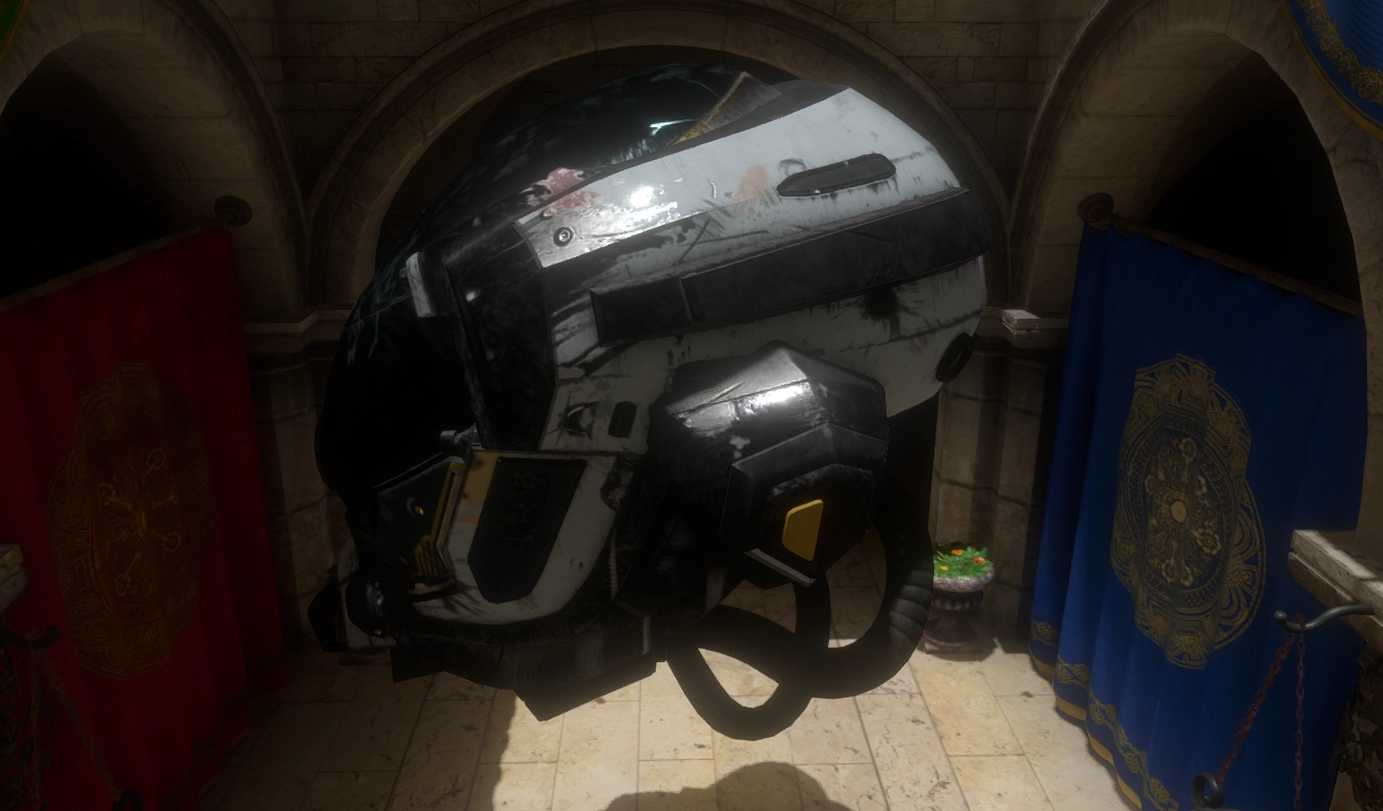

未开启自动曝光：

额外的功能

预曝光

  • 方案：创建一个Buffer，存储两个float，一个是历史帧的预曝光，另一个是当前帧的预曝光
    • 为什么要两个？

      因为渲染器包含TAA，历史帧也需要乘预曝光，所以也就是说，Scene Color Lighting乘上当前帧的预曝光后，后续在TAA Pass，计算历史帧 Color时，还需要乘上历史帧的预曝光 / 当前帧的预曝光

    • 为什么不都在TAA阶段应用，而是Scene Color Lighting 与历史帧

      因为Scene Color Lighting Pass计算时有32精度，但存储之后只有16精度，后续在TAA读到的可能是有误的数据

    • 如何更新

      在计算曝光系数时，用当前帧的预曝光更新历史帧的预曝光，再用计算得到的曝光系数更新当前帧的预曝光

    • 还需要考虑Skybox Pass

时间平滑

  • 方案：无需额外Buffer，直接使用存储非Log版的exposure scale的值，作为上一帧；再计算当前帧的平均亮度，再计算档位，最后插值平滑

  • 实现

    float AvgLuminance = ComputeAvgLuminance(SumBin);
float OldExposureScaleWithoutEV = GetExposureScaleWithoutEV(ExposureScaleBuffer);
float4 ExposureData = ComputeTemporalSmooth(AvgLuminance, OldExposureScaleWithoutEV);

    计算档位

    float MiddleGrey = max(g_MiddleGrey, 1e-5);
float TargetAvg = clamp(AvgLuminance, g_MinAverageLuminance, g_MaxAverageLuminance);
float TargetExposure = TargetAvg / MiddleGrey;
float OldExposure = rcp(max(OldExposureScaleWithoutEV, 1e-5));

float AutoExposureAdapt(float OldExposure, float TargetExposure, float FrameTime,
                        float SpeedUp, float SpeedDown, float StartDistance, float ForceTarget)
{
    OldExposure = max(OldExposure, 1e-5f);
    TargetExposure = max(TargetExposure, 1e-5f);
    FrameTime = clamp(FrameTime, 1e-4f, 0.1f);

    float LogTarget = log2(TargetExposure);
    float LogOld = log2(OldExposure);
    float LogDiff = LogTarget - LogOld;
    float Speed = max((LogDiff > 0.0f) ? SpeedUp : SpeedDown, 0.0f);
    float M = AutoExposureExponentialM(Speed, StartDistance);

    float LogExp = AutoExposureExponentialAdapt(LogOld, LogTarget, FrameTime, Speed, M);
    float LogLin = AutoExposureLinearAdapt(LogOld, LogTarget, FrameTime, Speed);
    float LogAdapted = abs(LogDiff) > StartDistance ? LogLin : LogExp;
    float Adapted = exp2(LogAdapted);
    return lerp(Adapted, TargetExposure, saturate(ForceTarget));
}

    处理线性到指数的切变：

    先设定一个距离，档位差小于等于这个距离，从线性衰减切换到指数衰减（每次走剩余距离的百分比）

    需要注意：由于从线性衰减切换到指数衰减，肯定会有切变，UE做了对应处理，在差不多等于距离时，执行了个换算，将指数衰减的值变换到线性衰减（同一衰减距离），防止切变

    （这里直接copy的ue的代码）

    float AutoExposureExponentialM(float Speed, float StartDistance)
{
    const float kFrameTimeEps = 1.0f / 60.0f;
    float StartTime = StartDistance / max(Speed, 1e-3f);
    float Denom = (1.0f - exp2(-kFrameTimeEps * Speed)) * StartTime;
    return kFrameTimeEps / max(Denom, 1e-5f);
}

float AutoExposureExponentialAdapt(float Current, float Target, float FrameTime, float Speed, float M)
{
    float Factor = 1.0f - exp2(-FrameTime * Speed);
    return Current + (Target - Current) * Factor * M;
}

float AutoExposureLinearAdapt(float Current, float Target, float FrameTime, float Speed)
{
    float Offset = FrameTime * Speed;
    return (Current < Target) ? min(Target, Current + Offset) : max(Target, Current - Offset);
}
